Aeon API
The Aeon API allows developers to perform actions in Aeon and build integrations outside of the installed Aeon components. For example, the API allows the developers to connect to the database and change a transaction status.
Installation | Aeon API URL | Swagger Documentation | OData Support | Available Endpoints | Authentication | Additional Information
Installation
Certain Microsoft .NET components must also be installed on the Aeon Server to use the Aeon API. These components are provided by Microsoft and will need to be installed separately as they are not included in the default Aeon installation:
- Aeon 6.0, 5.2, and 5.1: The Aeon API requires the Microsoft ASP.NET Core 8.0 Runtime Hosting Bundle (download from Microsoft's website). This installer is provided by Microsoft and must be run separately.
Note: As of v5.1, the Aeon API is installed by default during the server installation/update process and does not need to be installed separately. However, the .NET Core components are not part of the default Aeon install and will still need to be installed separately.
Aeon API URL
The default Aeon API URL will vary depending on the version of Aeon that is currently installed:
- As of Aeon v6.0, the default URL for the Aeon API is https://servername/aeonapi/. The default path to the Aeon API is not customizable.
- For standard Aeon installations on Aeon v5.2 or earlier, the default URL for the Aeon API is https://servername/aeon/api/. However, your path to the API may differ if using a non-standard installation path for the Aeon API on your Aeon server.
If you are unsure which path to use for your API URL, please contact Atlas Support at support@atlas-sys.com if Atlas-hosted or your local Aeon server administrator if self-hosted.
Swagger Documentation

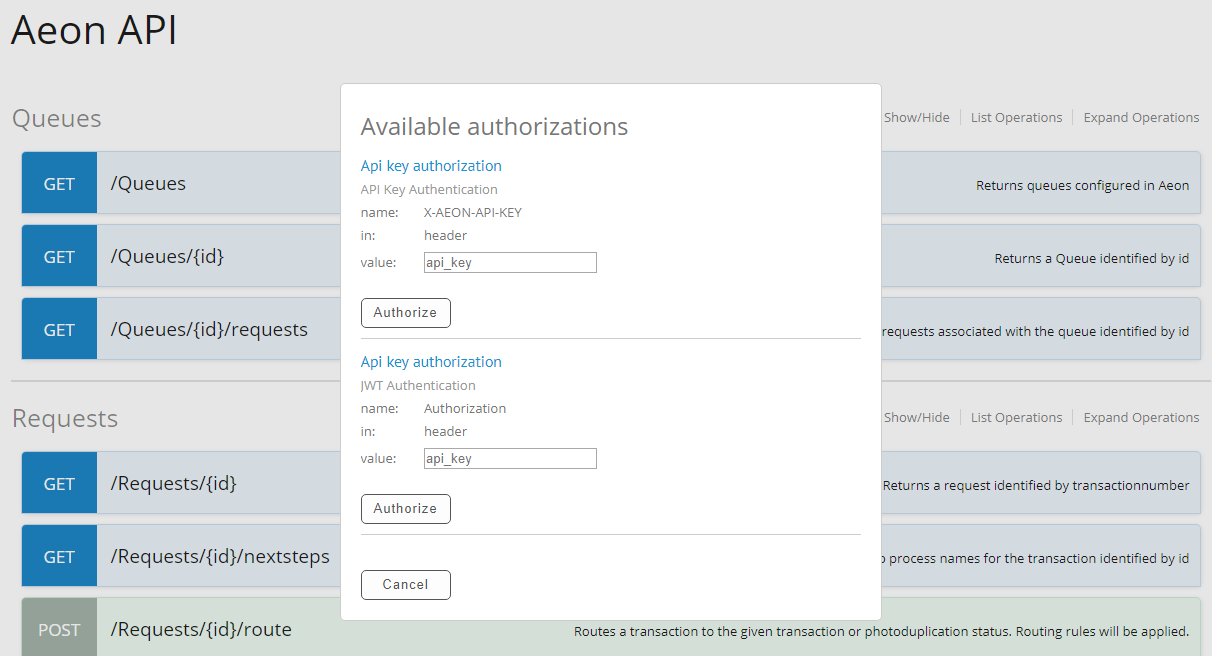

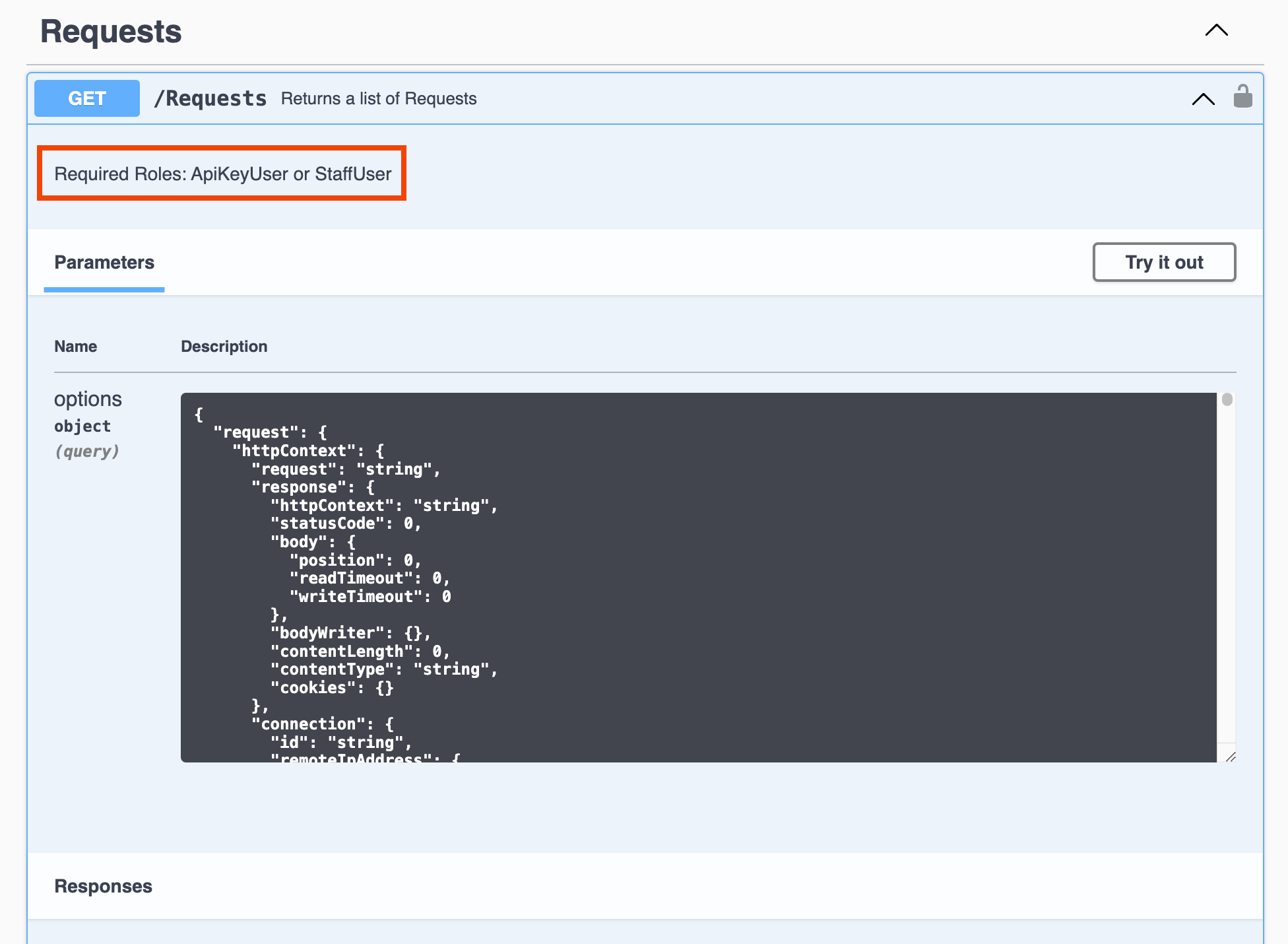

The Aeon API has developer-oriented documentation built-in. You can get to the API Swagger documentation at https://servername/aeonapi/swagger/ (Aeon 6.0) or https://servername/aeon/api/swagger/ (Aeon 5.2 or earlier).
Developers without access to an existing Aeon server can view Swagger documentation for the Aeon 6.0 API at https://partner.aeon.atlas-sys.com/aeonapi/swagger/index.html, however, please note that the "Try it out" feature for each endpoint is not supported in the public Swagger interface.
*Replace 'servername' with the IP address or DNS.
OData Support
OData query options are available to help filter result data for select Aeon API endpoints that return a list of objects.
Supported Endpoints
The list of endpoints supporting OData query option varies depending on the version of Aeon that is currently installed:
- Aeon 6.0+: See the odata section of the Aeon API Swagger documentation for a list of the supported endpoints.
- Aeon 5.2/5.1: OData is only supported for the Get Users endpoint.
Filtering
Custom fields defined in the CustomFieldDefinitions table are not available for OData filtering.
The $filter option allows filtering results by applying a Boolean expression. The filter expressions include logical and arithmetic operators, and string functions.
When using these operators, strings should be single-quoted, while dates and numbers must not be quoted. Multiple conditions can be combined with 'and' or 'or.'
Filter Operators
| Operator | Description |
|---|---|
| eq | Equal |
| ne | Not equal to |
| gt | Greater than |
| ge | Greater than or equal to |
| lt | Less than |
| le | Less than or equal to |
| and | Logical and |
| or | Logical or |
| startswith(property, substring) | The property starts with the substring value |
| endswith(property, substring) | The property ends with the substring value |
| substringof(property, substring) | The property contains the substring value |
Information on additional available comparators and operators can be found in the Microsoft documentation.
Example
Return users with email addresses ending in "gmail.com":
GET /<API URL>/Users?$filter=endswith(eMailAddress, '@gmail.com')
Pagination
OData pagination can be added to the query to limit the number of results returned by the endpoint using the following parameters:
| Parameter | Description |
|---|---|
| skip | Specifies the number of items in the queried collection that are to be skipped and not included in the result |
| top | Specifies the number of items in the queried collection to be included in the result |
Additional information on OData pagination can be found in the Microsoft documentation.
Examples
Return a list of the first 100 users:
GET /<API URL>/Users?$top=100
Return a list of users 101-200 (i.e., skipping the first 100 results):
GET /<API URL>/Users$top=100&skip=100
Return a list of users 201-300 (i.e., skipping the first 200 results):
GET /<API URL>/Users?$top=100&skip=200
Available Endpoints
Aeon 6.0
Developers can find the complete list and supporting documentation for the endpoints available in the Aeon 6.0 API in the Aeon Swagger documentation.
Aeon 5.2 & 5.1
Click to expand the list of endpoints in the Aeon 5.1 and 5.2 API
Custom Fields | Queues | Reading Rooms | Requests | System Information | Token | Users
To use the reshelved endpoint, you must first update your Aeon server and the client to version 4.1, then update your Aeon API to version 1.2.0 with the installer linked above. All other endpoints are available on the previous version of the Aeon API, version 1.2.0.
Custom Fields
Retrieve custom fields by context type
| Method | Endpoint |
|---|---|
| Get | /api/customFieldDefinitions/{contextType} |
Returns a list of custom fields defined for the specified context type.
Parameters:
- contextType: The context type for which to return the list of custom fields.
Properties of the information returned
| Property Name | Description |
|---|---|
| id | Numeric ID of the field definition. |
| contextType | Activity, Transaction, or User |
| shortName | The short name of the field that can be used to add the field to a request via POST message. |
| dataType | The data type of the field. |
| label | The display label used for the field in the Aeon Client. |
Custom Fields Support in Other Endpoints
To include custom fields when creating a request via the POST Request endpoint, the Request JSON object must have a property named "CustomFieldsValues" containing all custom field values that will be supplied in the "ShortName:value" format.
Response objects returned by the GET Request and POST Request endpoints and user objects returned by the GET User endpoint will contain a CustomFields property listing all defined fields for the given request, in the same "ShortName:value" format. Null values will be included.
Queues
Retrieve queues | Retrieve a specific queue | Retrieve requests within a specific queue
Retrieve queues
| Method | Endpoint |
|---|---|
| Get | /api/Queues |
Returns queues configured in Aeon.
Retrieve a specific queue
| Method | Endpoint |
|---|---|
| Get | /api/Queues/{id} |
Returns a Queue identified by ID.
Retrieve requests within a specific queue
| Method | Endpoint |
|---|---|
| Get | /api/Queues/{id}/requests |
Returns requests associated with the queue identified by ID.
Reading Rooms
Retrieve reading rooms | Retrieve a specific reading room | Retrieve closures for a specific reading room | Retrieve available appointment times for a specific reading room and date
Retrieve reading rooms
| Method | Endpoint |
|---|---|
| Get | /api/ReadingRooms |
Returns a list of reading rooms configured for appointment scheduling in Aeon.
Parameters:
- siteCode (optional): If supplied, only the reading rooms for that site will be returned; if not supplied, all reading rooms will be returned.
Properties of the information returned
| Property Name | Data Type |
|---|---|
| id | int |
| name | string |
| availableSeats | int |
| timeZoneID | string |
| minLeadDays (Aeon 5.1 only) | int |
| maxLeadDays (Aeon 5.1 only) | int |
| minAppointmentLength | int |
| maxAppointmentLength | int |
| appointmentPadding | int |
| appointmentIncrement | int |
| lastModifiedTime | datetime |
| sites | Array of strings |
| openHours | Array of OpenHours objects containing the following properties: - dayOfWeek (int, 0-7) - dayName (string) - openTime (string, in HH:mm:ss format) - closeTime (string, in HH:mm:ss format) |
| policies (Aeon 5.2+) | Array of ReadingRoomPolicies objects containing the following properties: - id (int) - readingRoomID (int) - userStatus (string) - appointmentRequired (bool) - appointmentMinLeadDays (int) - appointment MaxLeadDays (int) - requestMinLeadDays (int) - requestMaxLeadDays (int) - autoConfirmAppointments (bool) - appointmentReminderDays (int) - notifyAppointmentReceived (bool) |
Retrieve a specific reading room
| Method | Endpoint |
|---|---|
| Get | /api/ReadingRooms/{id} |
Returns information on a specified reading room identified by ID.
Parameters:
- id (int): The ID of the reading room for which to return information.
Properties of the information returned
| Property Name | Data Type |
|---|---|
| id | int |
| name | string |
| availableSeats | int |
| timeZoneID | string |
| minLeadDays (Aeon 5.1 only) | int |
| maxLeadDays (Aeon 5.1 only) | int |
| minAppointmentLength | int |
| maxAppointmentLength | int |
| appointmentPadding | int |
| appointmentIncrement | int |
| lastModifiedTime | datetime |
| sites | Array of strings |
| openHours | Array of OpenHours objects containing the following properties: - dayOfWeek (int, 0-7) - dayName (string) - openTime (string, in HH:mm:ss format) - closeTime (string, in HH:mm:ss format) |
| policies (Aeon 5.2+) | Array of ReadingRoomPolicies objects containing the following properties: - id (int) - readingRoomID (int) - userStatus (string) - appointmentRequired (bool) - appointmentMinLeadDays (int) - appointment MaxLeadDays (int) - requestMinLeadDays (int) - requestMaxLeadDays (int) - autoConfirmAppointments (bool) - appointmentReminderDays (int) - notifyAppointmentReceived (bool) |
Retrieve closures for a specific reading room
| Method | Endpoint |
|---|---|
| Get | /api/ReadingRooms/{id}/Closures |
Returns a list of full closures for the specified reading room, limited to those occurring in the future. This endpoint reports both full closures (i.e. "Closed" exception types) and "partial" closures (i.e. "Reduced Availability" exception types) that reserve a number of seats greater than or equal to the reading room's total available seats.
Parameters:
- startDate (datetime): Specifies a start time in the reading room's timezone.
- endDate (datetime): Specifies an end time in the reading room's timezone.
- note (string): Specifies the public note associated with the closure.
Retrieve available appointment times for a specific reading room and date
| Method | Endpoint |
|---|---|
| Get | /api/ReadingRooms/{id}/AvailableAppointments/{date} |
Returns a list of available appointment times for the specified reading room on the specified date.
Note: This endpoint will ignore appointments with a status of Cancelled when determining the appointment availability for the room.
Parameters:
- id (int): The ID of the reading room for which to return information.
- date (string): The date for which availability should be returned.
- userStatus (string)*: The user status for which availability should be returned, based on the policies defined for that status in the Status-Specific Policies table configured for the reading room in the Aeon Customization Manager.
If a status is not specified in the userStatus parameter or if the status specified in the parameter does not have an entry in the reading room's Status-Specific Policies table, then the endpoint will return appointment availability based on the default policies defined for the reading room.
*Aeon 5.2 only
Properties of the information returned
| Property Name | Description |
|---|---|
| startTime | Available start time in the reading room's timezone. |
| utcStartTime | Available start time in the UTC timezone. |
| seatsAvailable | The number of seats available at the listed time. |
| maximumAppointmentLengthMinutes | The maximum possible length of an appointment beginning at the listed start time. |
Requests
Retrieve a specific request | Retrieve next steps for a specific request | Create a new request | Route a request to a new status | Retrieve valid routing statuses for a request | Retrieve requests associated with a barcode | Reshelve request by barcode | Add note to a request | Retrieve notes for a specific request | Update request information
Retrieve a specific request
| Method | Endpoint |
|---|---|
| Get | /api/Requests/{id} |
Returns a request identified by transaction number.
Retrieve next steps for a specific request
| Method | Endpoint |
|---|---|
| Get | /api/Requests/{id}/nextsteps |
Returns next step process names for the transaction identified by ID.
Create a new request
| Method | Endpoint |
|---|---|
| Post | /api/Requests/create/ |
Creates Aeon requests for a specified user.
API Call:
At a minimum the username (user must be a valid user in the database) must be supplied; however, additional user information may be provided if supplied by the appropriate corresponding database column names.
- Request process:
- The request will be created and the initial routing will be performed of the transaction and will return a JSON object with creation details including the transaction, including TN, and any default field values.
Additional Notes
- If two fields with the same name are supplied to the endpoint (e.g., two "username" fields), only the second value will be used
- If a field that does not exist is supplied to the endpoint, that value will be ignored
- Validation will apply to ensure that the request can be added to the associated appointment (if present) based on the timeframe configured in the Request Minimum/Maximum Lead Days settings for the associated reading room in the Aeon Customization Manager
Example Call:
{
"requestFor": {
"type": "Activity",
"reference": "string"
},
"username": "string",
"appointmentID": 0,
"bundleID": 0,
"callNumber": "string",
"documentType": "string",
"eadNumber": "string",
"format": "string",
"forPublication": true,
"itemAuthor": "string",
"itemCitation": "string",
"itemDate": "string",
"itemEdition": "string",
"itemInfo1": "string",
"itemInfo2": "string",
"itemInfo3": "string",
"itemInfo4": "string",
"itemInfo5": "string",
"itemIssue": "string",
"itemISxN": "string",
"itemNumber": "string",
"itemPages": "string",
"itemPlace": "string",
"itemPublisher": "string",
"itemSubTitle": "string",
"itemTitle": "string",
"itemVolume": "string",
"location": "string",
"maxCost": "string",
"pageCount": 0,
"referenceNumber": "string",
"scheduledDate": "2022-10-14T15:05:13.137Z",
"serviceLevel": "string",
"shippingOption": "string",
"site": "string",
"specialRequest": "string",
"subLocation": "string",
"systemID": "string",
"webRequestForm": "string",
"customFieldValues": {}
}
Route a request to a new status
| Method | Endpoint |
|---|---|
| Post | /api/Requests/{id}/route |
Routes a transaction to the given transaction or photoduplication status. Routing rules will be applied.
Retrieve valid routing statuses for a request
| Method | Endpoint |
|---|---|
| Get | /api/Requests/{id}/routes |
Returns a list of the valid transactions and photoduplication queues a request may be routed to.
Retrieve requests associated with a barcode
| Method | Endpoint |
|---|---|
| Post | /api/Requests/Batch/?{parameters} |
Returns a list of requests for the given barcode. Unlike the RequestBarcodes/Reshelved endpoints, the endpoint allows for nonstandard characters.
API Call:
- The request will check to see if the provided transaction number has a TransactionStatus of Awaiting Item Reshelving. If so, the API will route the request to the Item Reshelved status, and then to Request Finished status.
- The custom queue Item Reshelved will act as a transitory status that will trigger requests to automatically route to the Request Finished status.
- If activeOnly is set to true, only active requests will be returned.
Reshelve request by barcode
| Method | Endpoint |
|---|---|
| Post | /api/Requests/Batch/Reshelved |
Reshelves request based on the given barcode. Unlike the RequestBarcodes/Reshelved endpoints, the endpoint allows for nonstandard characters.
API Call:
- Request process:
- The request will search for the transaction record whose ItemNumber field matches the barcode provided in the API request. The ItemNumber field should be the only location used for the barcode number since Aeon assumes this field is the barcode and will not check any other fields for the barcode number.
- The request will then check to see if the provided transaction number has a TransactionStatus of Awaiting Item Reshelving. If so, the API will route the request to the Item Reshelved status, and then to Request Finished status.
- The custom queue Item Reshelved will act as a transitory status that will trigger requests to automatically route to the Request Finished status.
Add note to a request
| Method | Endpoint |
|---|---|
| Post | /api/Requests/{transactionNumber}/notes |
Adds a note to an existing request.
Parameters (required):
- noteText (string): The text for the note being added
- username (string): The username adding the note
- This value does not need to be an Aeon user and can be set to a value such as "Aeon Web API" to indicate that the note was added by the API.
- noteType (string): The type of the note being added
- Valid values for noteType are System, Staff, User, or ItemDetail
- If noteType is not specified, the value will default to System
API Call:
- The endpoint requires a JSON body containing information in the following format:
Example Call:
{
"noteText": "PostNote test note",
"username": "Aeon Web API",
"noteType": "System"
}
Example Response:
{
"id": 662,
"transactionNumber": 15,
"noteDate": "2022-09-08T18:57:12.8656546",
"noteText": "PostNote test note",
"username": "Aeon Web API",
"noteType": "System"
}
Retrieve notes for a specific request
| Method | Endpoint |
|---|---|
| Get | /api/Requests/{transactionNumber}/notes |
Returns a list of notes associated with a specified request.
Parameters (required):
- TransactionNumber: The transaction number for the request
Example Response:
[
{
"id": 1,
"transactionNumber": 1,
"noteDate": "2022-09-12T13:48:50.855Z",
"noteText": "Note Text",
"username": "username",
"noteType": "System"
},
{
"id": 2,
"transactionNumber": 1,
"noteDate": "2022-09-12T13:48:50.855Z",
"noteText": "Note Text 2",
"username": "username",
"noteType": "System"
}
]
Update request information
| Method | Endpoint |
|---|---|
| Patch | /api/Requests/{id} |
Used to update information for a specific request.
API Call:
- In addition to the ID for the request specified in the API call, requests to this endpoint must contain a body in the JSON Patch format using the "replace" action to specify which Aeon fields on the course record to overwrite with new values:
[
{ "op": "replace", "path": "/<aeonField1>",
"value": "<NewValue>" },
{ "op": "replace", "path": "/<aeonField2>",
"value": "<NewValue>" }
]
Note: The path property must specify an Aeon request field name using camelcase, e.g. 'fieldName'
- Custom fields defined in the CustomFieldDefinitions table will need to be updated using the following format, where
is replaced by the short name defined for the field in the Customization Manager:
[
{"op": "replace", "path": "/customFieldValues",
"value": {"<ShortName>": "<NewValue>"}}
]
Example Call:
The following example will set the ItemAuthor field to Doe, John, the ItemVolume field to 456, the ItemTitle field to null, the ItemInfo5 field to ItemInfo, and a Transaction type custom field defined in the CustomFieldDefinitions table with the short name Container3 to Custom:
[
{"op": "replace", "path": "/itemAuthor", "value": "Doe, John"},
{"op": "replace", "path": "/itemVolume", "value": "456"},
{"op": "replace", "path": "/itemTitle", "value": null},
{"op": "replace", "path": "/itemInfo5", "value": "ItemInfo"},
{"op": "replace", "path": "/customFieldValues",
"value": {"Container3": "Custom"}}
]
Additional Notes:
- To remove a value from a field, use the replace action to set the new value for the field to null, for example:
{"op": "replace", "path": "/itemTitle", "value": null}
- Any Aeon request field available in the create request endpoint is available for use with this endpoint
Response:
The endpoint can return the following responses:
- 200 Success: The operation was completed successfully and a JSON model of the updated request is returned
- 400 Bad Request: The request information was invalid
- 401 Unauthorized: The API request was not properly authorized
- 404 Not Found: The specified request was not found
RequestBarcodes endpoints (deprecated)
| Method | Endpoint |
|---|---|
| Post | /api/RequestBarcodes/{barcode}/reshelved |
The RequestBarcode endpoints have been replaced by the Requests/Batch endpoints and are now considered deprecated.
Reshelves request based on the given barcode.
API Call:
- Request process:
- The request will search for the transaction record whose ItemNumber field matches the barcode provided in the API request. The ItemNumber field should be the only location used for the barcode number since Aeon assumes this field is the barcode and will not check any other fields for the barcode number.
- The request will then check to see if the provided transaction number has a TransactionStatus of Awaiting Item Reshelving. If so, the API will route the request to the Item Reshelved status, and then to Request Finished status.
- The custom queue Item Reshelved will act as a transitory status that will trigger requests to automatically route to the Request Finished status.
| Method | Endpoint |
|---|---|
| Post | /api/RequestBarcodes/{id}/reshelved |
The RequestBarcode endpoints have been replaced by the Requests/Batch endpoints and are now considered deprecated.
Reshelves request based on a given transaction number.
API Call:
- The request will check to see if the provided transaction number has a TransactionStatus of Awaiting Item Reshelving. If so, the API will route the request to the Item Reshelved status, and then to Request Finished status.
- The custom queue Item Reshelved will act as a transitory status that will trigger requests to automatically route to the Request Finished status.
:::
System Information
Retrieve Web API version
Retrieve Web API version
| Method | Endpoint |
|---|---|
| Get | /api/SystemInformation/Version |
Returns the version of the Web API.
Token
Retrieve authentication token
Retrieve authentication token
| Method | Endpoint |
|---|---|
| Post | /api/Token |
Retrieves an authentication token for the provided staff credentials.
Users
Retrieve a list of users | Retrieve a specific user | Retrieve requests for a specific user | Retrieve appointments for a specific user
Retrieve a list of users
| Method | Endpoint |
|---|---|
| Get | /api/Users |
This endpoint supports OData filtering.
Retrieves a list of all users up to a maximum of 2000 results.
The maximum number of users that can be retrieved by this endpoint is 2000. OData filtering and pagination can be used to limit the number and specify the type of user results returned by the endpoint. Note that custom fields defined in the CustomFieldDefinitions table are not supported for use with OData filters, but will be returned by the endpoint in the results.
Retrieve a specific user
| Method | Endpoint |
|---|---|
| Get | /api/Users/{username} |
Returns a user identified by username.
Retrieve requests for a specific user
| Method | Endpoint |
|---|---|
| Get | /api/Users/{username}/requests |
Retrieves a list of all requests (or active requests only if the ActiveOnly parameter is used) for a specific user.
Retrieve appointments for a specific user
| Method | Endpoint |
|---|---|
| Get | /api/Users/{username}/appointments |
Returns a JSON object containing the list of appointments for a given user. The appointment object also contains the associated reading room object.
Parameters:
- Username: The username for which to retrieve appointments.
- Context: Can be "Self," "Researcher," or "Both" to filter the list of appointments for just the user, just the user's researchers, or to include both. If no context is specified, "Self" will be the default value.
- PendingOnly: Filters out past appointments by StartTime.
Authentication
Most of the actions will require authentication. There are 2 ways to authenticate in the Aeon API: Aeon API Key or staff tokens.
API Key
You can create an API key in the Aeon Customization Manager. More information on API keys is available at Configuring the Aeon Web Platform.
The Base Webservice URL isn't relevant for the API so you can just enter the API URL: https://servername/aeonapi/ (Aeon 6.0) or https://servername/aeon/api/ (Aeon 5.2 or earlier).
Staff Token (Aeon 6.0+ only)
Note: The POST Token endpoint used in Aeon 5.1 and 5.2 has been deprecated and replaced by the endpoints described below due to timeout issues.
As of Aeon v6.0, users can authenticate to the Aeon API via their Aeon staff accounts through the generation of staff tokens. This method allows users to use the API directly or through a third-party application without needing an Aeon API key. When this method of authentication is used:
- Actions taken by users via the API will be attributed to their username in the History and Tracking tables, instead of to the "System."
- Certain API endpoints will be restricted only to users with specific permissions (as configured in the Aeon Staff Manager).
- Time-based authentication will be enforced, as opposed to API key authentication, which never expires.
Token Authentication Process
The staff token authentication process uses the access and refresh token pattern, and includes support for multi-factor authentication (MFA). When a user authenticates via the staff token process, they will be assigned roles that determine the endpoints to which they will have access (see User Roles below). The basic flow is as follows:
- User authenticates with Aeon username and password via the POST Token endpoint (URL: <api>/Token).
- When MFA is enabled on the Aeon Server (default setting), the API responds with an access token and refresh token and grants the user the ValidUser role.
- If MFA is disabled on the Aeon Server, the API response will also grant the additional appropriate roles to the user (StaffUser, StaffManager, and/or UserWebProxy) in addition to the ValidUser role.
- When MFA is enabled on the Aeon Server, the user must then submit a multi-factor authentication code/one-time password (OTP) via the POST MFA validation token endpoint (URL: *<api>/Token/mfa/validate).*The access token returned from step 1 must also be included in a Bearer authorization header in the format Authorization: Bearer <accessToken>.
- The API responds with an access token and refresh token granting the AuthenticatedUser role and any additional appropriate roles to the user (StaffUser, StaffManager, and/or UserWebProxy).
- This step will be omitted if MFA has been disabled on the Aeon Server. See Logging into the Aeon Web Client for details.
- The user can then submit API requests allowed for their role(s), which must contain their access token in a Bearer authorization header in the format Authorization: Bearer <accessToken>.
- When the user's access token expires, the user submits a refresh request containing the access and refresh tokens via the POST Token refresh endpoint (URL: <api>/Token/refresh). Note that the refresh token submitted via the endpoint cannot be expired.
- The API will respond with new access and refresh tokens for the user.
- Repeat steps 3 - 4 for as long as needed.
- (optional) User submits a logoff request via the POST token logoff endpoint (URL: <api>/Token/logoff), which invalidates any access or refresh tokens for that user.
For more details on the necessary parameters and the data returned for each endpoint, see the Token section fo the Aeon Swagger documentation.
User Roles
The following roles can be granted by an access token retrieved using the staff token authentication flow above:
- ValidUser: Indicates that the user has logged in with a valid Aeon staff account username and password
- AuthenticatedUser: Indicates that the user has logged in and submitted a valid MFA code
- StaffUser: Indicates that the user has authenticated and has Client access (as assigned in the Aeon Staff Manager)
- StaffManager: Indicates that the user has authenticated and has Staff Manager access (as assigned in the Aeon Staff Manager)
- UserWebProxy: Indicates that the user has permission to Logon to Web as an Aeon (non-staff) user (as assigned in the Aeon Staff Manager)
Authenticating via the API Key method will grant the ApiKeyUser role, which allows access to all endpoints.
A user may be granted multiple roles simultaneously depending on their user permissions and authentication status, as noted for each role above. The swagger interface will display which roles are required for each endpoint:
_27847951836691-73ea25ef2940cb851965333380adde43.png)
Testing the Authentication
To test in the swagger interface, you can click on Authorize in the top right corner of the swagger interface. A pop-up like an image shown below will appear.
- The first option (Name: X-AEON-API-KEY) is for the API Key; Just paste the API key directly into the value and click authorize.
- For the staff token authentication (Aeon 6.0+), POST to the Token operation (URL: <api>/Token) to get a JWT access token value. In the swagger interface, you would enter BEARER <JWT value from Token response>.
Note that if the staff account that is being used to obtain a token is locked or has an expired password, the API will not generate a token.
_360017796014-ebf241a1c696d07da2685ada1a9e2d37.png)
Additional Information
If there is specific functionality that you are looking to use to integrate with your services, we encourage you to submit enhancements & ideas to Uservoice at https://uservoice.atlas-sys.com/. Thanks!
